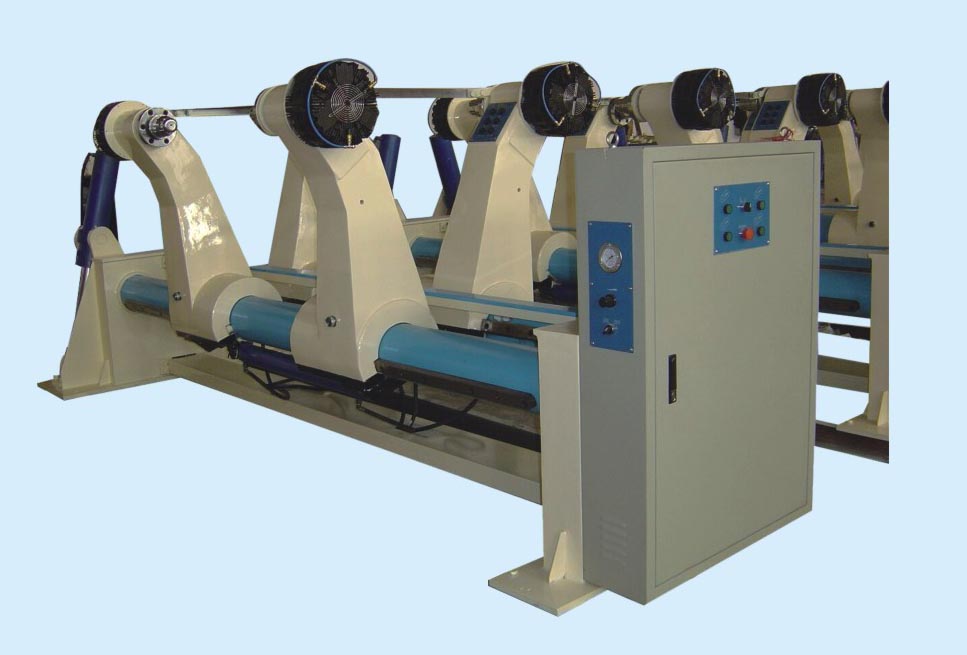

Mill roll stand - Electric

Features:

• Upholding of paper roll and paper feeding in the course of production
• Holding, vertically or horizontally movement of paper roll electrically.
• Manual or pneumatic brake.

Specifications:

• Max. dia. or roll: 1300mm, 1500mm
• Max width of roll: 1400mm- 1800mm

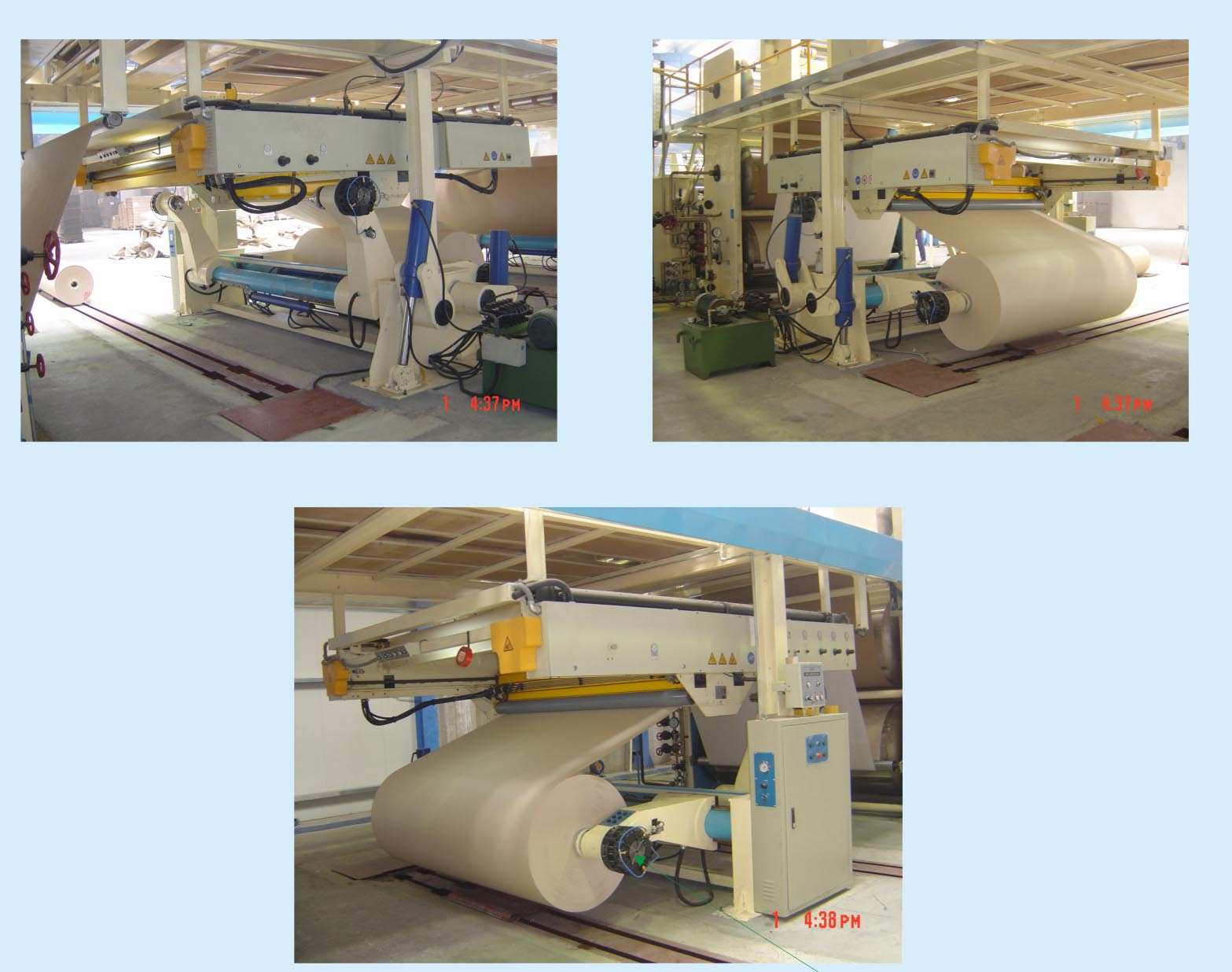

Auto splicer ASP150 / 200 / 300

Features:

• Full pneumatic driving, no any motors.
• With three highest speed of splicer models selection
• Special structure applicable for all kinds of paper!
• PLC control and implementary devices can constantly keep properly the paper tension
• Automatic, manual integrated tension control system
• Convenient and reliable human and machine interface operation

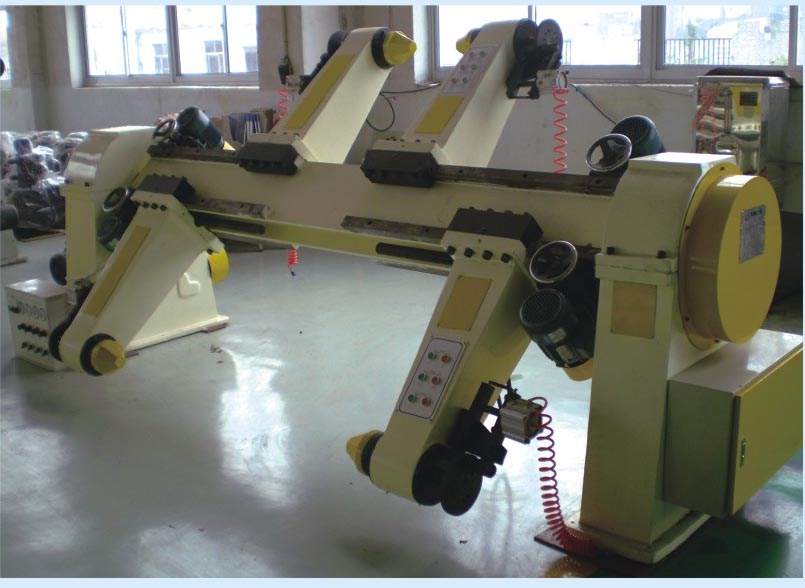

Mill roll stand - Hidraulic

Features:

• Upholding of paper roll and paper feeding in the course of production
• Holding, vertically or horizontally movement of paper roll electrically.
• Controlled by six hydraulic cylinders.
• Pyramid, gear core and expansion optional.
• pneumatic, magnetic powder, air brake or tension control for optional.

Specifications:

• Max. dia. or roll: 1300mm, 1500mm
• Max width of roll: 1400mm- 2500mm

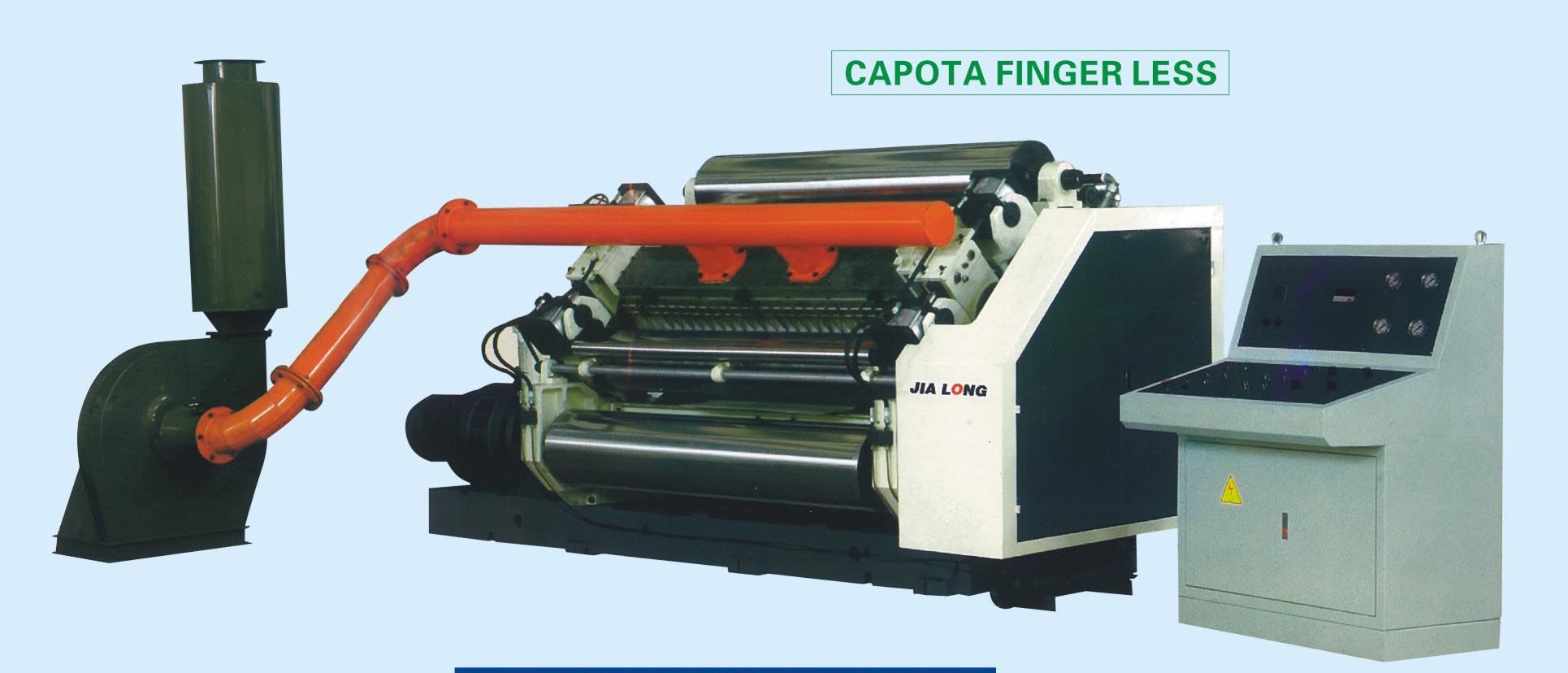

Fingerless Single Facer I

Features:

• Adapting for low and middle speed production line
• Adopting covered vacuum adsorption structure.
• Glue thickness adjusted by electric and digital display.
• Lubrication by recycling oil or high temperature grease.
• Block off glue by electromotion.

Specifications:

• Max speed: 80 ~ 300m/min
• Width: 1400mm ~ 2500mm
• Dia. of roll: 280, 310, 360, 430 mm

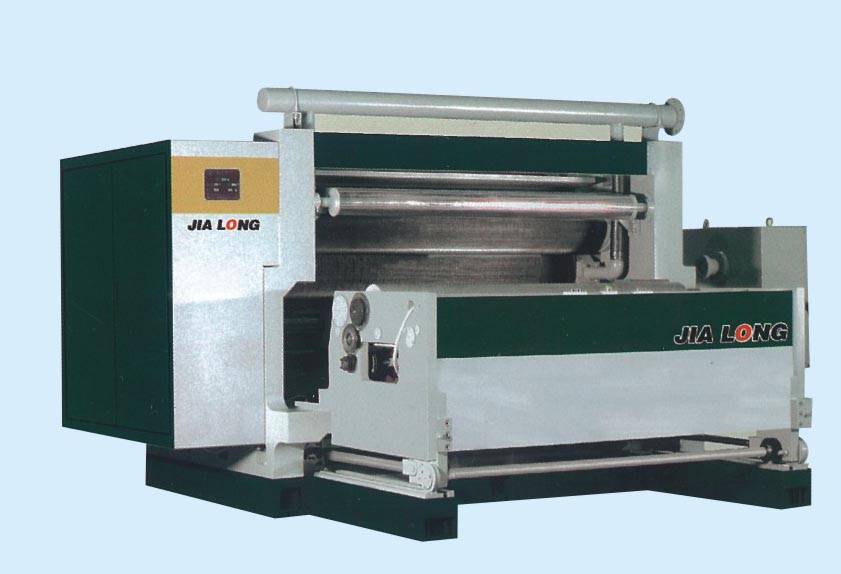

Fingerless Single Facer II

Features:

• Adapting for low and middle speed production line
• Adopting inside-draw vacuum structure with silencre, low noise
• Glue thickness adjusted by electric and digital display.
• Diameter of corrugating rolls: 310mm, 360mm, 430mm, made from ally steel 48CrMo, hardened treatment on the surface, precision grinding, coated with chrome, hardness reaching HRC58-62
• Working surface of each paper-guiding roll, preheater and pressure roll polished and coated with chrome
• Adopting infrared, auto paper break protection, withdrawal of press roll and glue plate when breaking.
• Auto glue thickness adjust according to different speed.

Specifications:

• Max speed: 120 ~ 300m/min
• Width: 1400mm ~ 2500mm
• Dia. of roll: 310, 360, 430, 530 mm

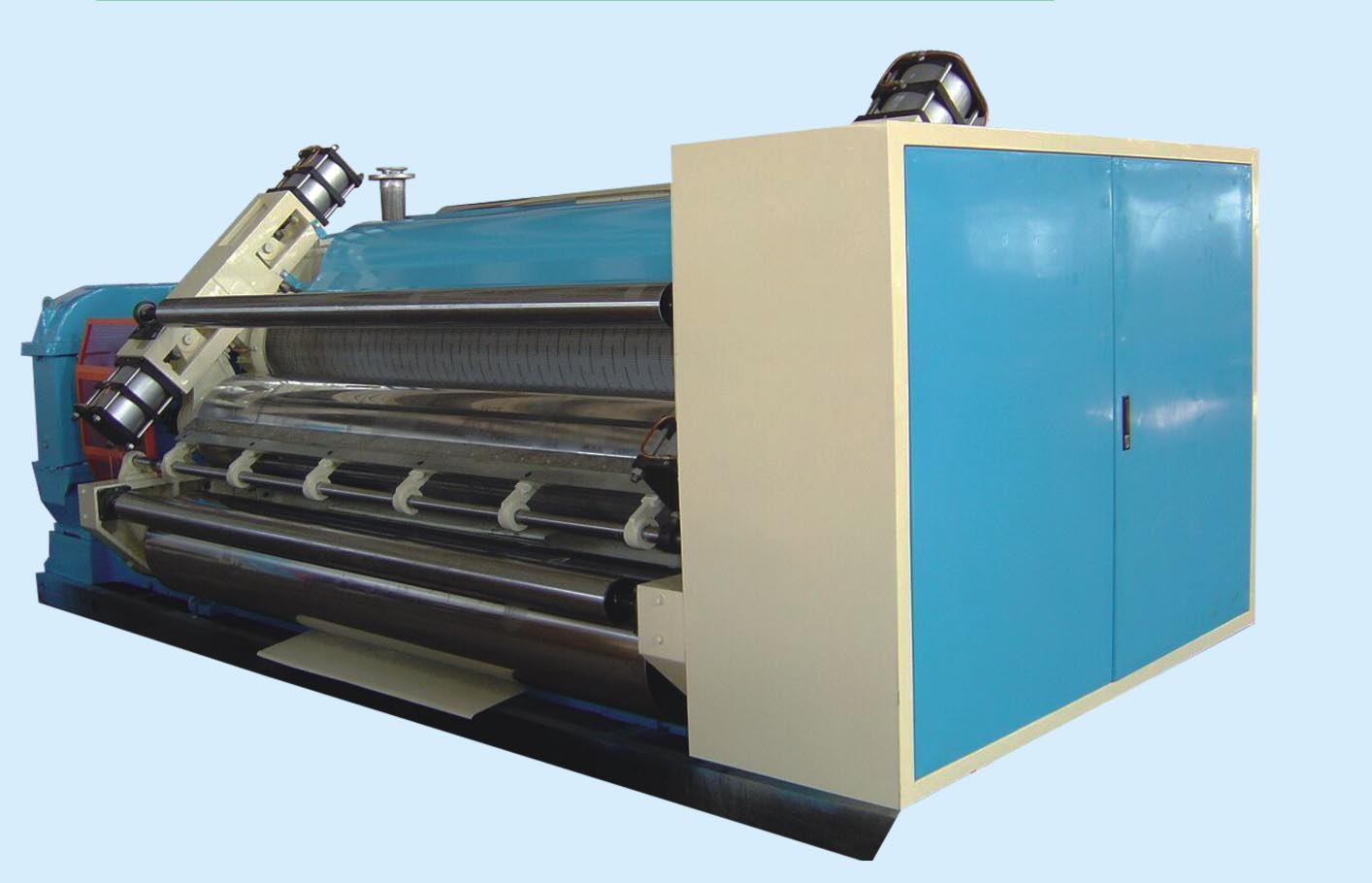

Fingerless Single Facer III

Features:

• Pneumatic - control gluing section, easy to clean.
• The doctor roll and the lower corrugated roll, the pressure roll and the lower corrugated roll are adjusted by the electromotion at the same time.
• The doctor roll adjusted by dual face driving, tension after coming back automatically
• Easy to demount the whole structure of the upper and lower corrugated roller.
• Tungsten carbide corrugated roll.

Specifications:

• Max speed: 150 ~ 250m/min
• Width: 1600mm ~ 2500mm

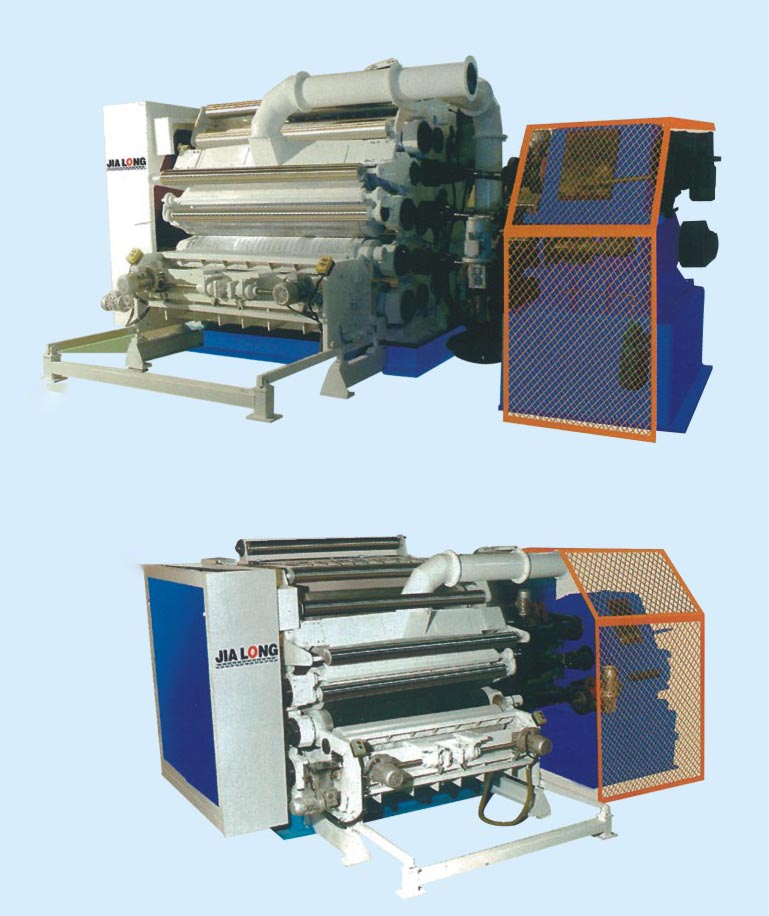

Twin Facer IV

Features:

• Twin facer structure, one flute unit working and another can be pre-heating.
• Operate the switch of clutch to change flute rapidly, and can get of flute type combination.
• Vacuum suction system provides perfect flute shape.
• Auto-circulating glue feeding system is provided, motorized glue application.
• The flute is hydraulic controlled, glue application is pneumatic controlled

Specifications:

• Max speed: 150 ~ 250m/min
• Width: 1600mm ~ 2500mm

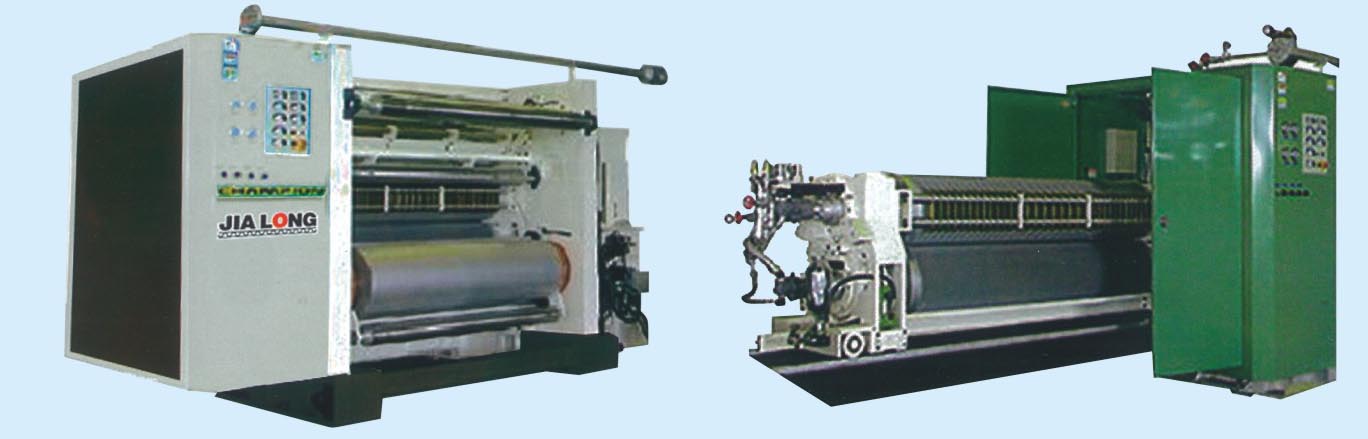

Fingerless single Facer V

Features:

• The amount of adhensive applying is micro-adjustable with digital read-out
• The gap between lower corrugating roll and pressure is control by motorized with limit switch. To prevent damage both the rolls. The read-out is digital.
• Automatic forced oil feeding lubrication equipment.
• The whole control is integrated.
• Lower corrugated roll equipment with the damper to avoid breaking paper involved into roll and saving stop production when paper is broken.
• The frame of machine has internal stress homologue to avoid machine frame has any deformation for keeping more usign life.

Specifications:

• Max speed: 150 ~ 250m/min
• Width: 1600mm ~ 2500mm

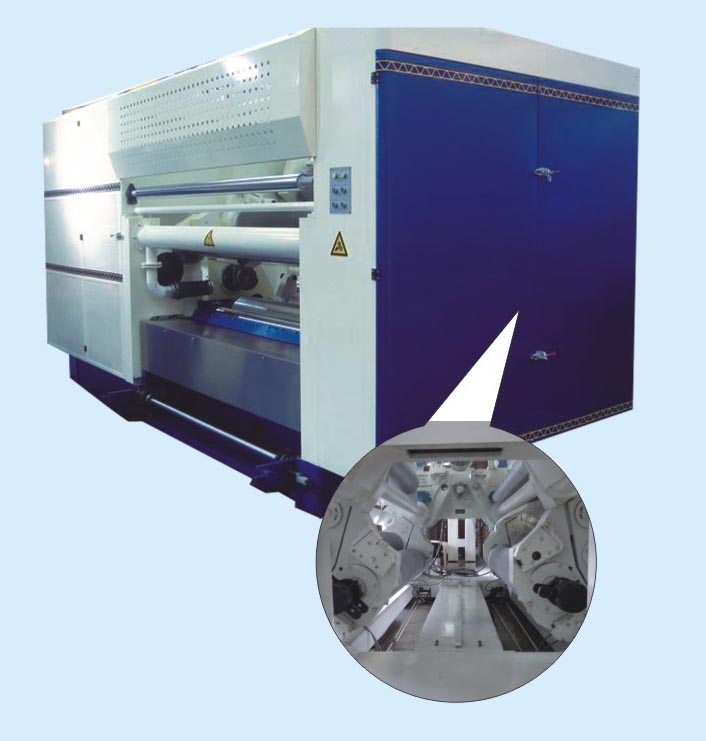

DFSF/MFSF SF-- VI/VII

Features:

• Multi flute change type corrugator.
• Change tine within five min. One corrugator can change flute three type at most.

Specifications:

• Max speed: 150 ~ 250m/min
• Width: 1600mm ~ 2500mm

Wind suction device

Features:

• Tensing the paper sheet on the bridge, control of wind by convertor
• Auto aligning and tension control system for option, to prevent paper from tilting

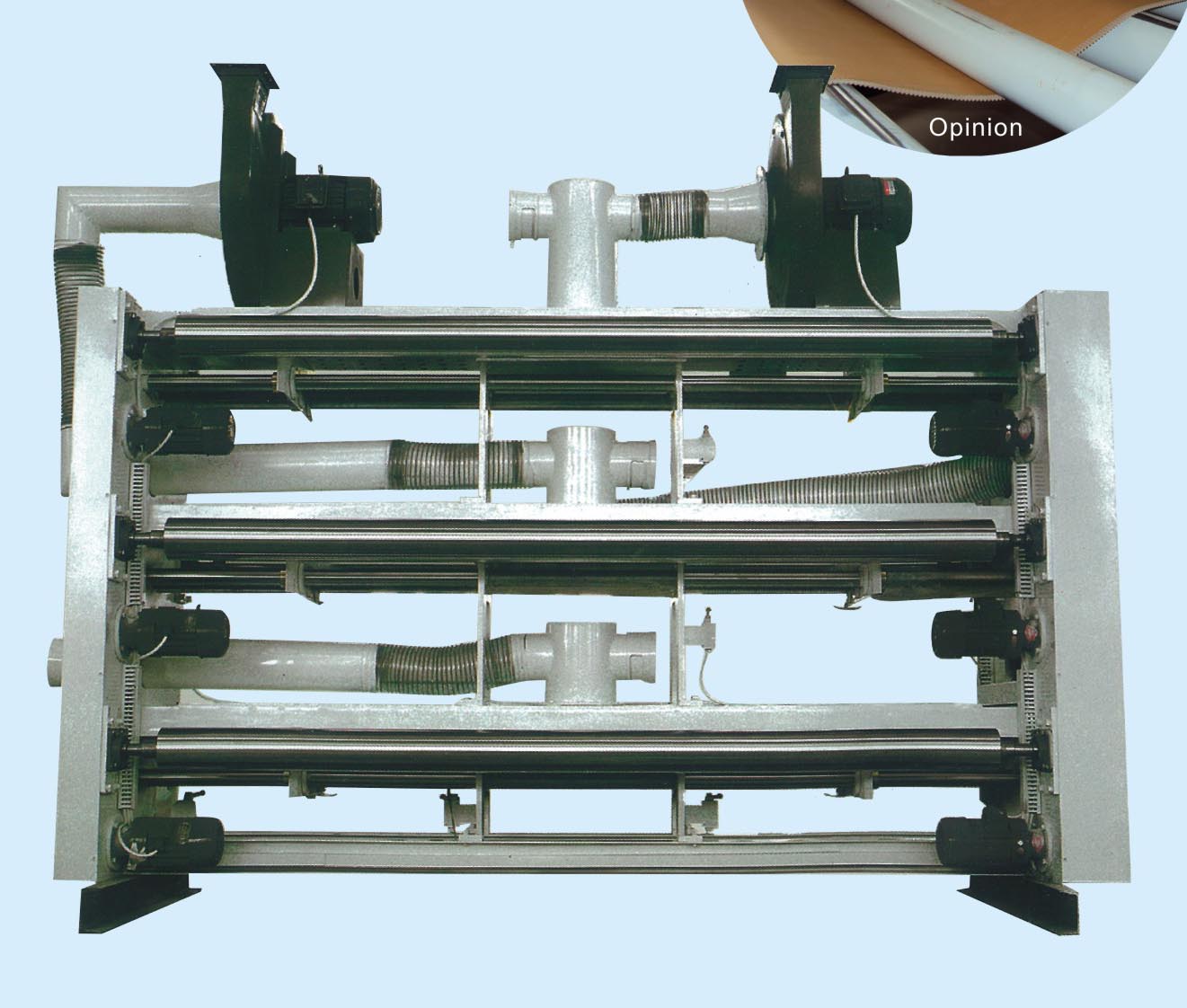

Preheater

Features:

• Heating raw paper or corrugated paper, moisture control of raw material.
• Manual or electric control of heating area of paper and auto adjust the angle according to the speed difference.
• Advanced round closure design, keeping even heat for paper and save energy.

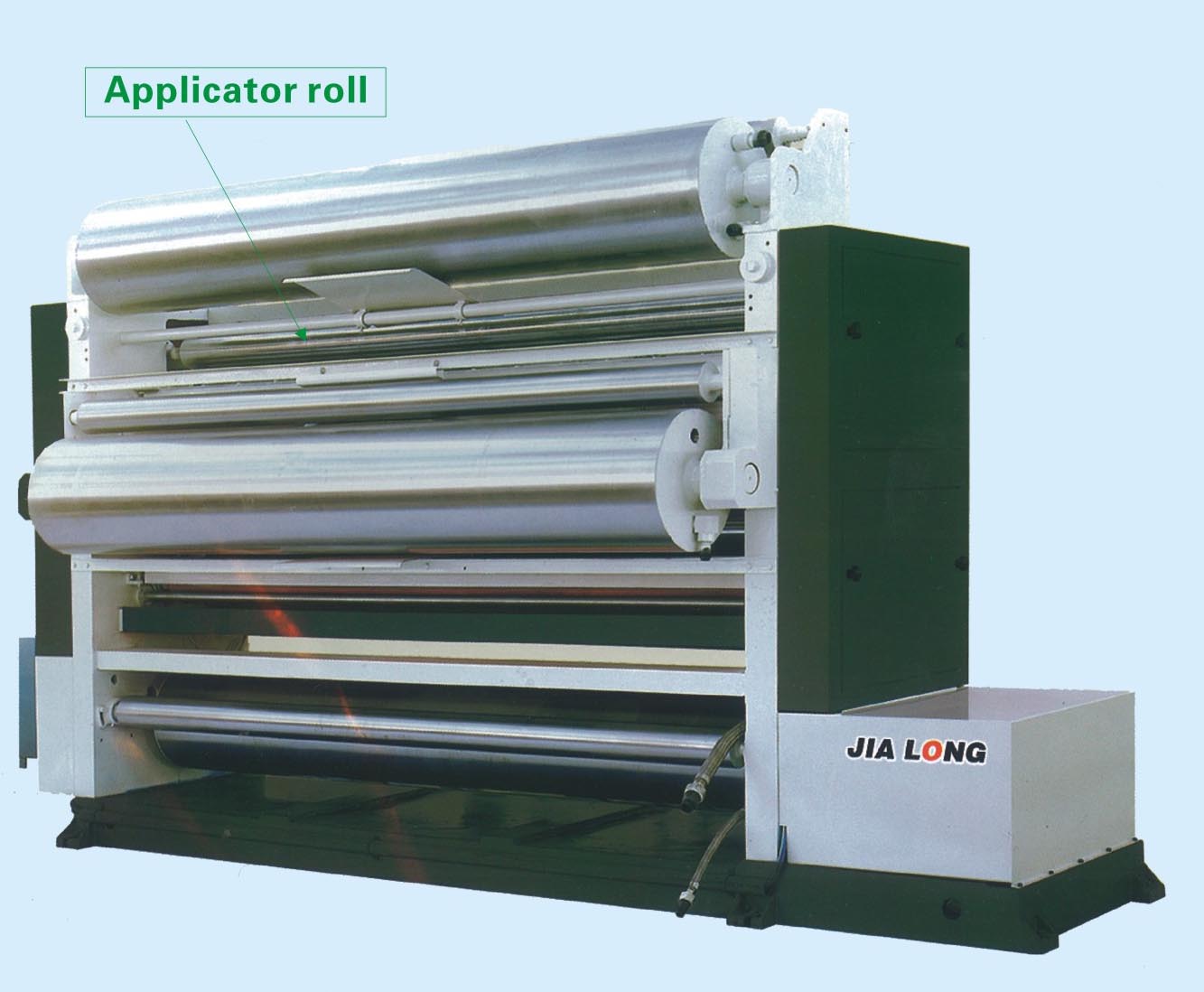

Glue machine

Features:

• Separated motor drive.
• Press roll up and down by pneumatic.
• Thickness of glue adjusted manually, electronically auto adjust according to different speed with digital display.
• Press roll or contact bar for choice.
• With preconditioner device to speed up gluing.

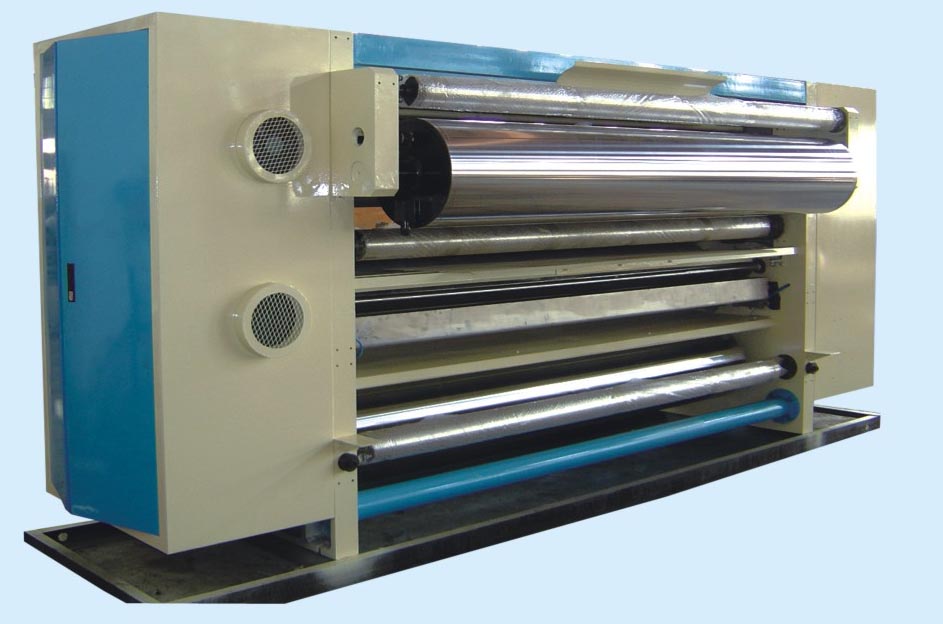

Glue machine II

Features:

• Separated power driving driving motion.
• The applicator roll and doctor roll driven by syncronism reducing bounce.
• Thickness of glue adjusted manually, electronically auto adjust according to different speed with digital display.
• Automatic break detection and press roll raising.
• Touch screen and PLC control.

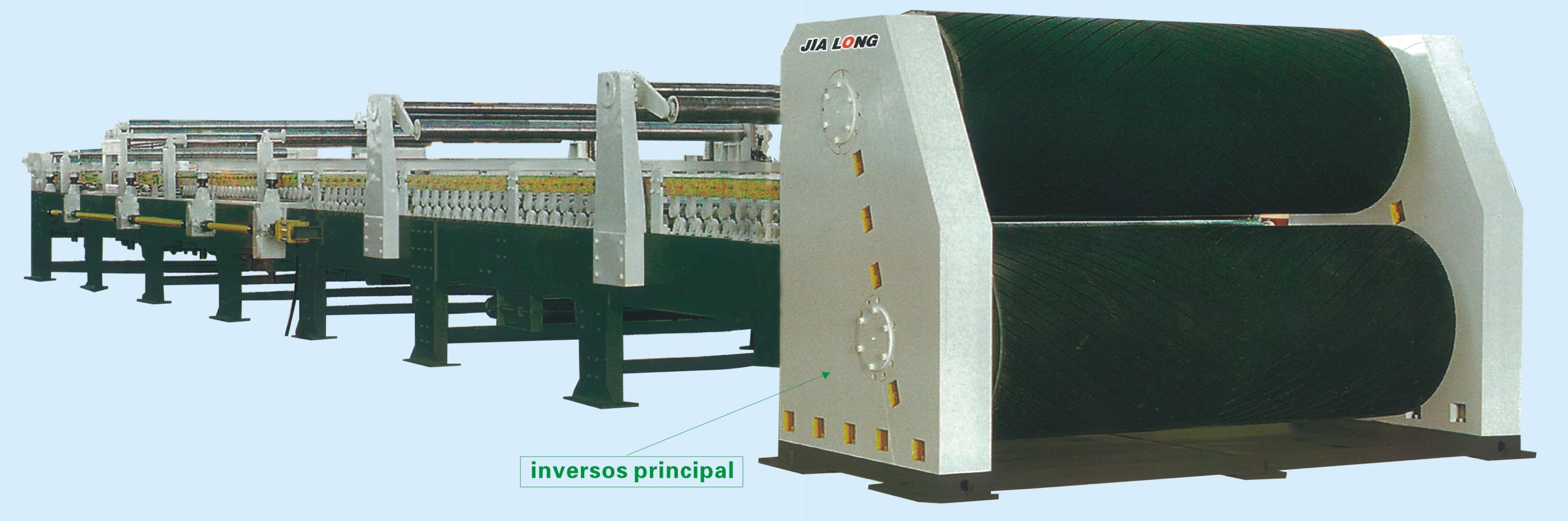

Double facer

Features:

• Hot section heated by steam, hydraulic lifting, pressing separately according to number of layers of board keeping proper pressure, facilitating formation of board.
• Pneumatic tension for upper belt, electric or auto alignment keeping better operation.
• Press roll or thermal bar optional, the number of the thermal bar controlled by PLC or production management system.
• The number of hot plates decided by different speed require and width including: 8/12/15/18/21/24 SIZE: 600x160for every plate.
• Adjust steam consumption according to the speed of entire line, so as to control the temperature of the hot plates.

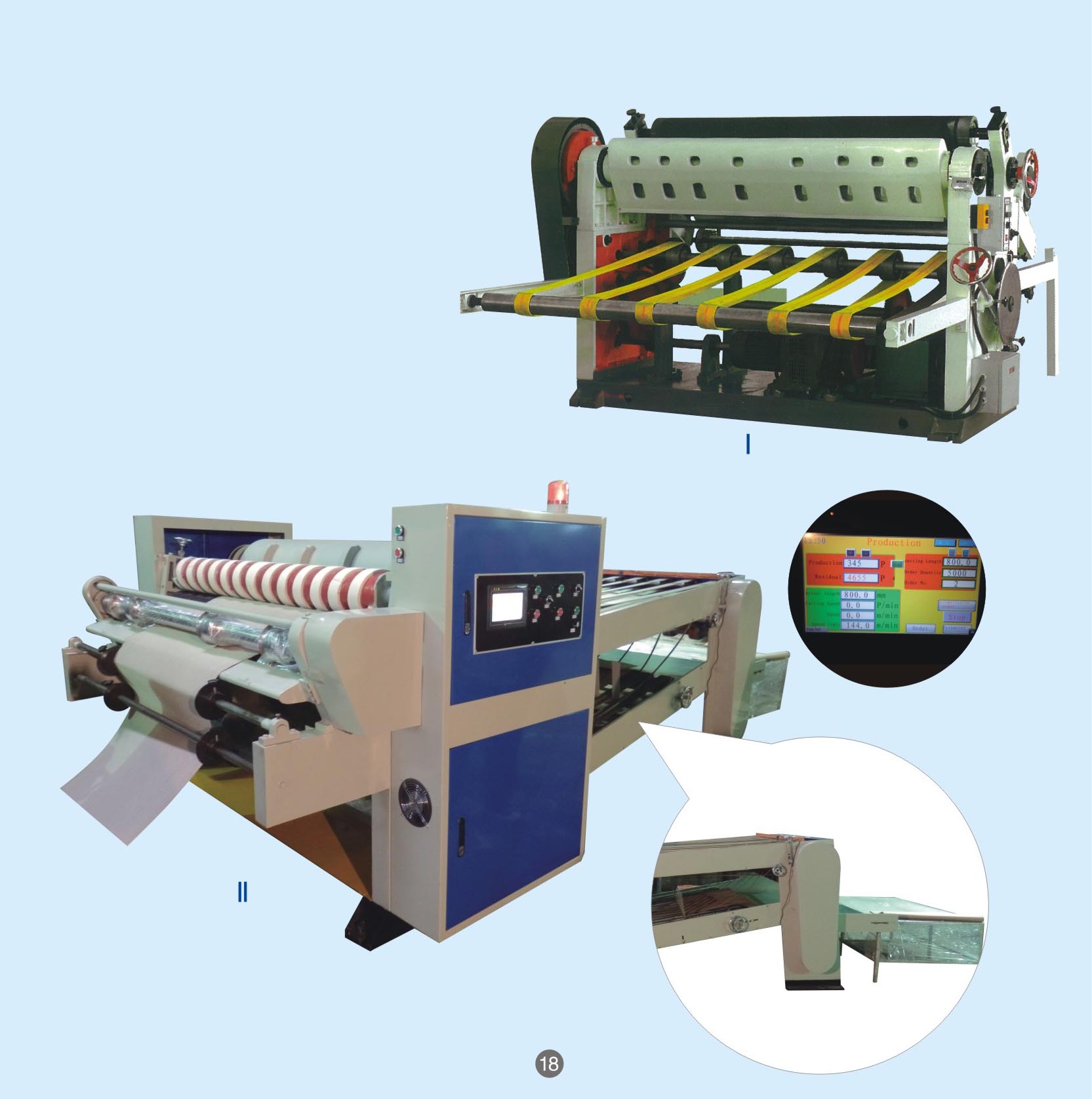

Rotary cutter ZSG

Features:

• Adopt stepless gear box, the width and length of the sheet is adjustable according to the require of customer, easy operation.
• The upper knife is rotary, the lowe knife is positive simple structure, convenient to maintain and adjust.
• The knife is made from high quality alloy steel, hardness of the can reach HRC62, keep long life.
• Feeding unit main drive roll is treated by static balance, so can keep accuracy of feed.

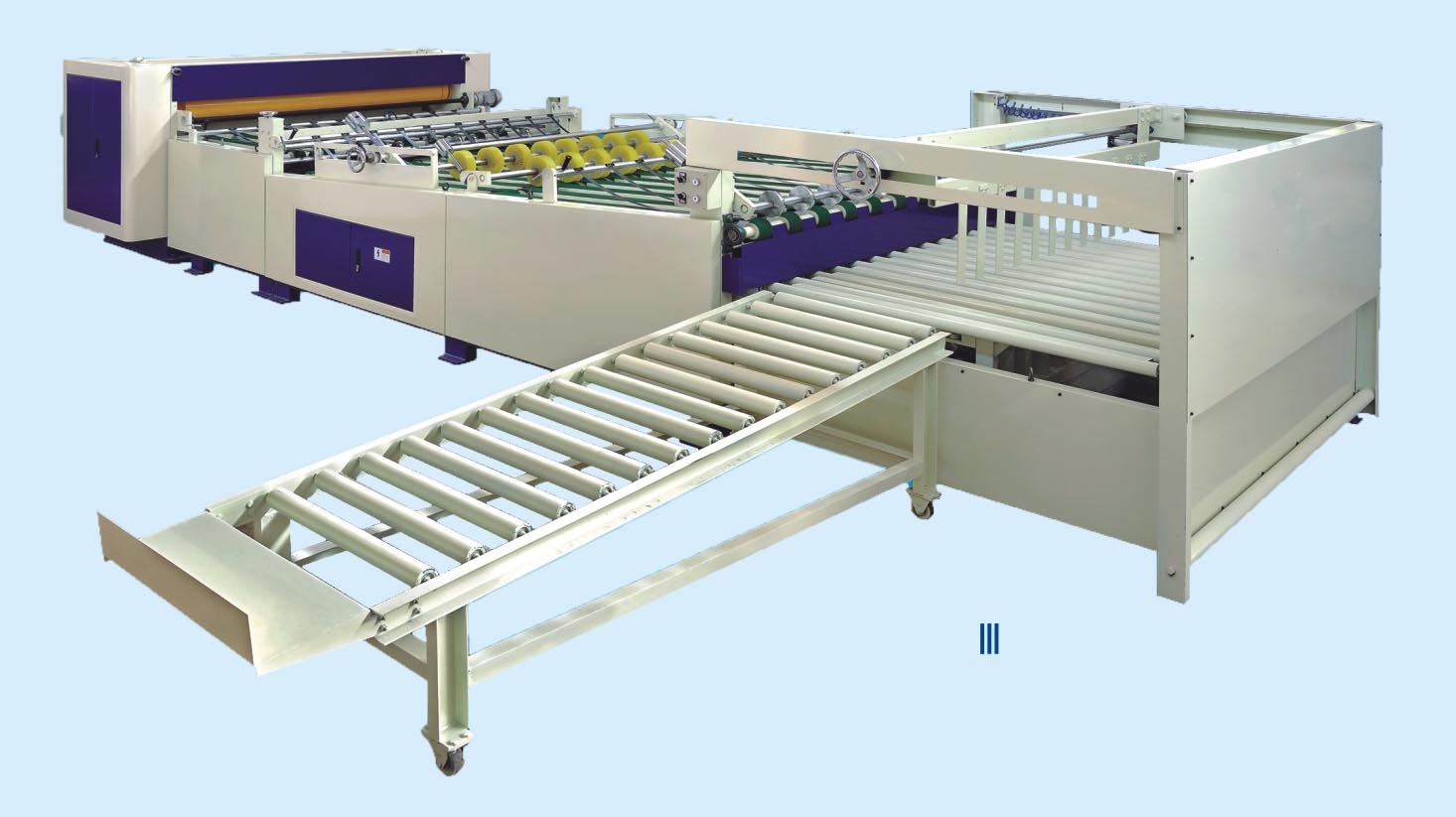

Single sheet cutter

Features:

• Short diameter high average speed, better to improve the productivity.
• The precise adjustable gapless gear ensures accurate mesh. Drive directly, decrease the obstruction and drive nimble.
• Computer controlling make tantamount to 1/3 electricity of common cutter.
• Computerize length and amount store above 300 orders.
