Box making machine - Slotter

Box making machine - Slotter

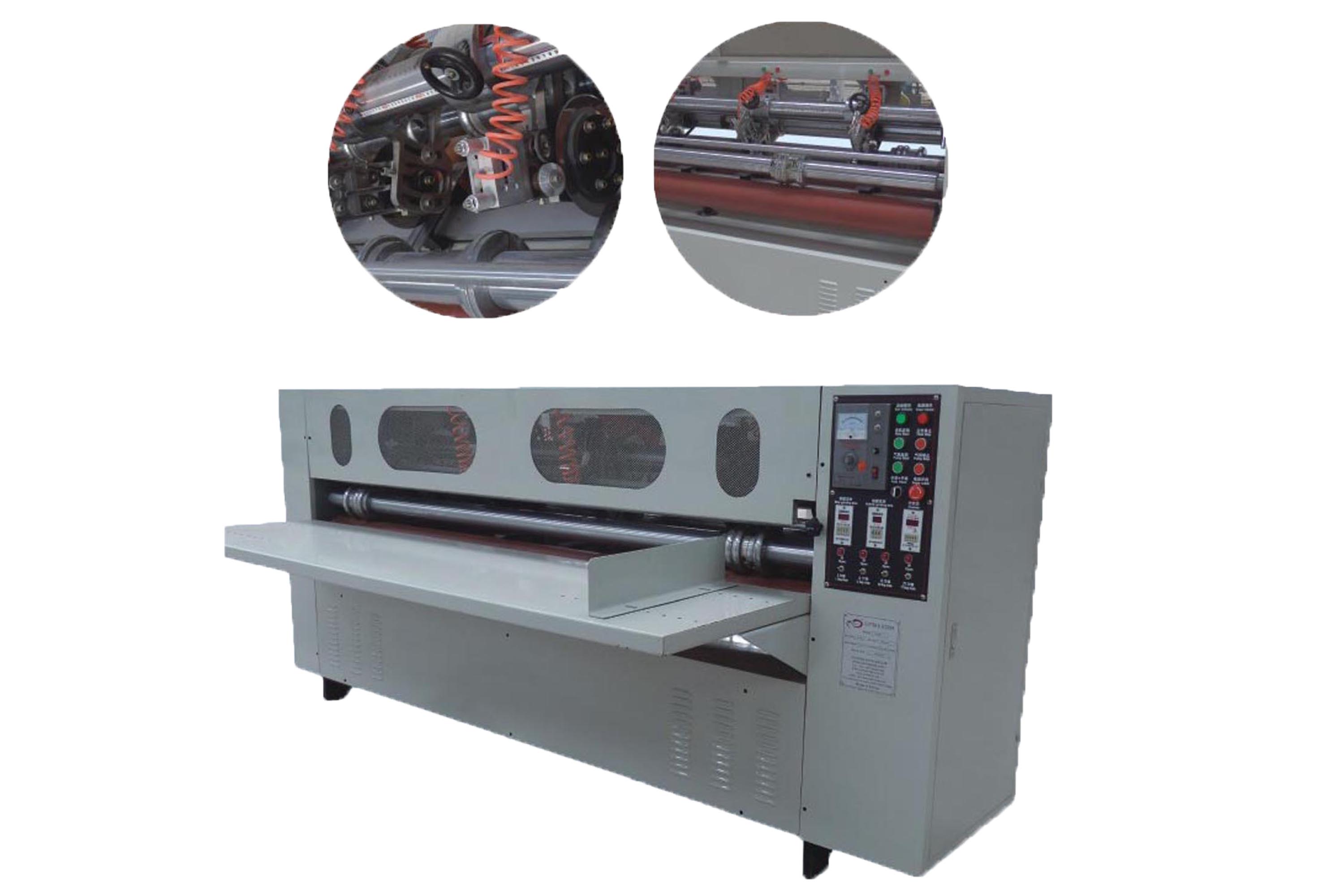

Slitter & Scorer II

Features:

  • The machine can complete the operation of trimming and scoring of corrugated paperboard at a time.

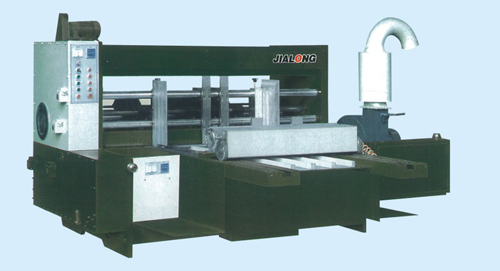

Auto slotter creaser

Features:

  • The advanced negative pressure absorption technique is used for feeding board. Variable suction, allow uneven board to input smoothly.
  • Able to print, slit, crease, flap cut in one pass.Easy operation with excellent accuracy rate print results.
  • Creasing uniform accurately
  • Hole making equipment can be provided, handholds etc.

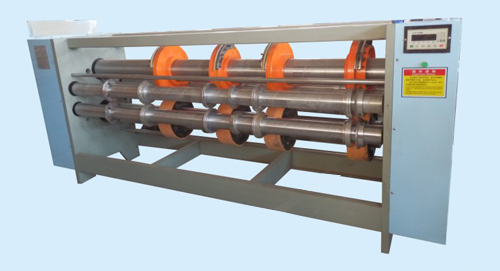

Rotary slotter (Chain feed) II/III

Features:

  • Able to slit, scorn, nap cut in one pass.
  • The chain is used to send board, with simple adjustment and high working efficiency.
  • Hole making equipment can be provided, handholds etc
  • The electric adjustment can be provided.

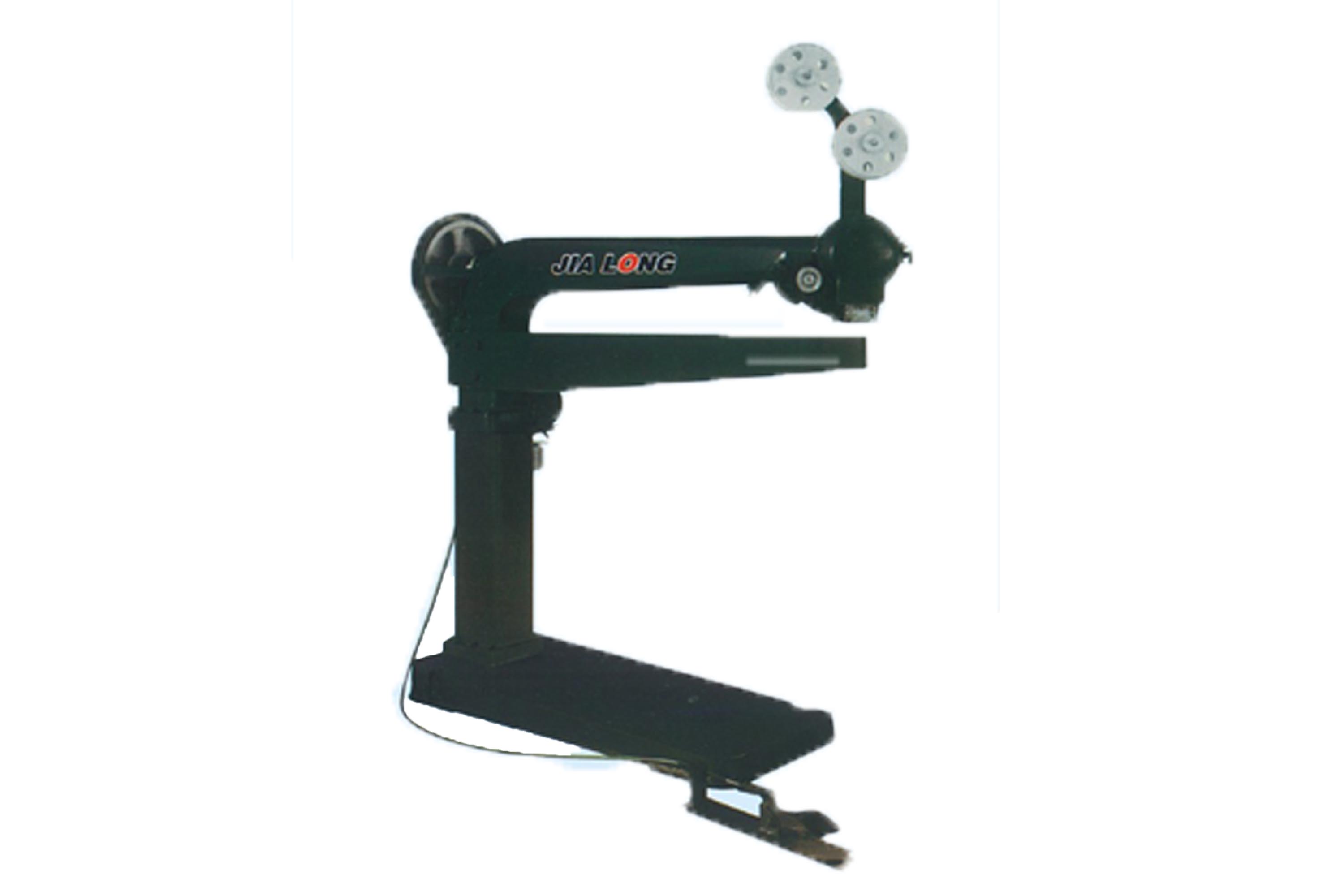

Stitching machine

Features:

  • Efficient and fast stitching for variable corrugated carton.
  • Single and double stitching are available

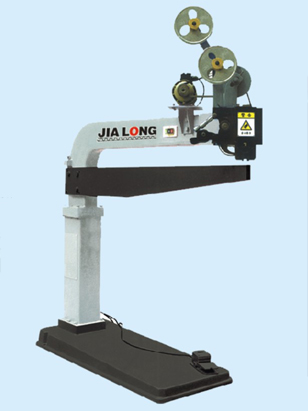

Stitching machine (DX-1400 high speed)

Features:

  • DX-1400 high speed stitcher, driven by electromagnetic clutch, quick staple setup, solid and fine binding of corrugated paperboard cartons. It is new generation of carton binding equipment ideal for carton industry.

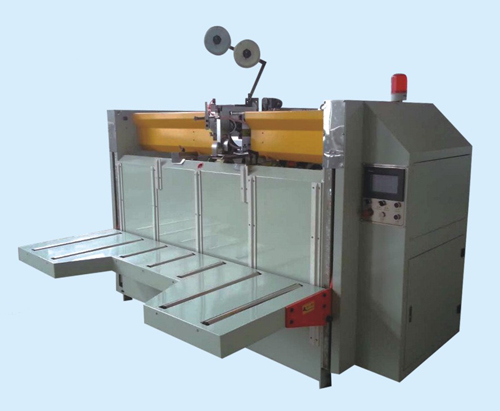

Semi-Auto stitcher machine

Features:

  • One minute quick order change.
  • Easy operatio, no training is necessary
  • Single, Double and fortified stitching nail are available can be shifted to each stitching mode easily
  • Counter is the feeding part can set the number of the pack, the box will come out in pack, easy for packing
  • It takes the advantages of high speed and high efficiency

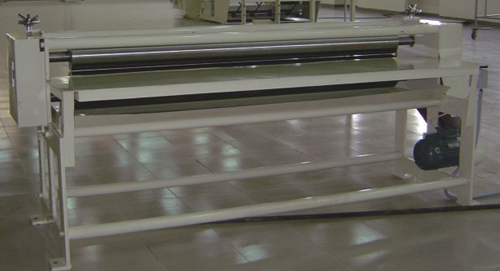

Gluing machine

Features:

  • This series gluing machines is one of the special equipment to manufacture corrugated board. It is mainly used for coating and bunding of corrugated board.

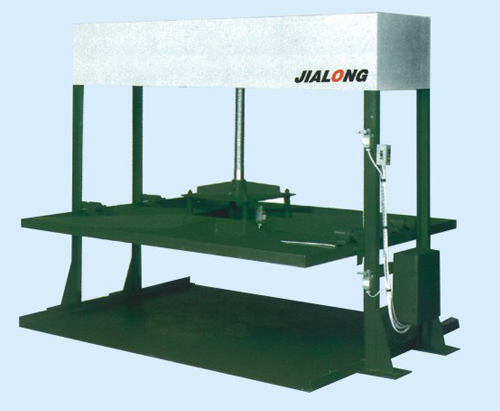

Pressing machine

Features:

  • This machine mostly design to planish the paste board, after felt, to make it symmetrical, firm and plane.

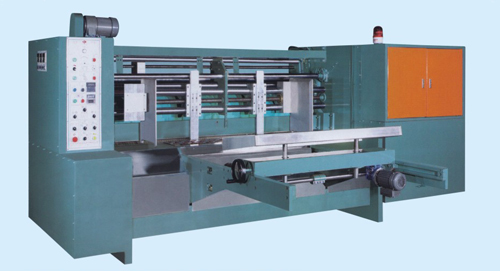

Die Cutting auto rotary machine

Features:

  • Stand alone die cutter, can be used for printed box manufacture.
  • This machine features die cutting creasing and cutting hand holes. Suiteble for solid board and medium or small caliper board.
  • It features high precision die-cutting with high speed, and easy operation
  • It is designed for double roll rotarry pressing, electromagnetic speed adjustment and motorized die-cutting register adjustment by planet gearing mechanism.
  • 60mm transverse moving of anvil is controlled by the mechanism cam device, roller is controlled by the mechanic cam device.
  • Lead ecige feeder and kick feeder are both available by your request.

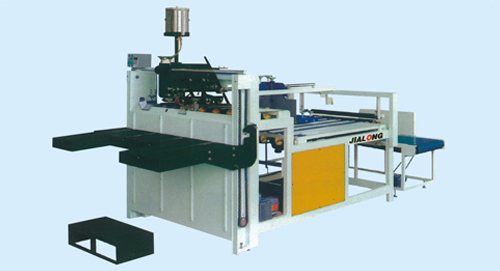

Semi auto folder gluer

Features:

  • One minute quick order change.
  • Easy operation, no necessary training.
  • Carton gluer min. size 240mm.

Auto folder gluer

Technical specifications:

  • Max belt speed: 120m/min
  • Total power: 18kW, 5~10 kW during normal working, 380V 3 phase 50/60hz
  • Dimmensions: 12640mm x 3977mm x 3000mm
  • Total weight: 13.5 tonnes.
  • Control: PLC automatic programmable control.
  • Flute: 3 or 5 plys A, B, C, AB, BC
